Medium Voltage Switchgear (MV Switchgear) plays a critical role in the safe and reliable distribution of electrical power in systems ranging from 1 kV to 36 kV. It ensures the protection, control, and isolation of electrical equipment in power networks, enabling the interruption of power flow during fault conditions and maintenance procedures. This blog explores what medium voltage switchgear is, the various types, its wide-ranging applications, and the benefits it offers to industries, utilities, and infrastructure.
What Is Medium Voltage Switchgear?

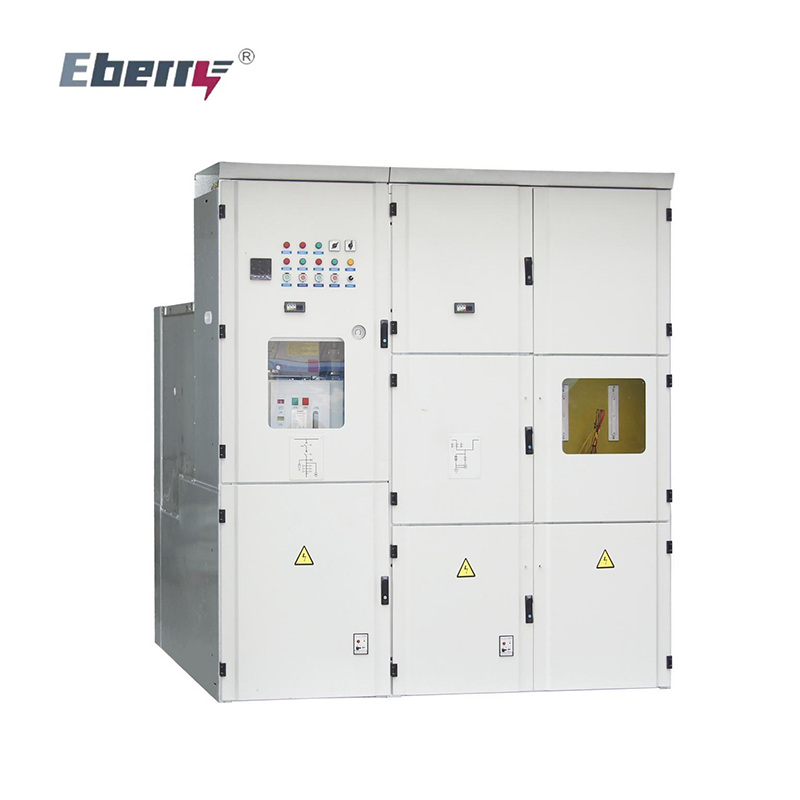

Medium Voltage Switchgear refers to a collection of electrical devices designed to manage, protect, and control power distribution in the medium-voltage range, typically between 1 kV and 36 kV. It includes circuit breakers, disconnectors, current transformers, protective relays, earthing switches, and enclosures.
MV switchgear is commonly found in power substations, industrial facilities, commercial buildings, and renewable energy plants. Its purpose is to provide safe switching, fault isolation, and system monitoring to maintain operational continuity and protect assets.
Types of Medium Voltage Switchgear
Medium voltage switchgear can be categorized based on insulation technology, construction design, and installation method:
| Type | Insulation Medium | Key Features | Typical Use |
| Air-Insulated Switchgear (AIS) | Air | Cost-effective, larger footprint | Indoor substations, industrial plants |
| Gas-Insulated Switchgear (GIS) | SF6 gas | Compact, high reliability | Urban areas, tunnels |
| Solid-Insulated Switchgear (SIS) | Epoxy resin/solid | Eco-friendly, sealed design | Indoor/outdoor, compact areas |
| Hybrid Switchgear | Combination | Mix of AIS & GIS benefits | Space-saving substations |

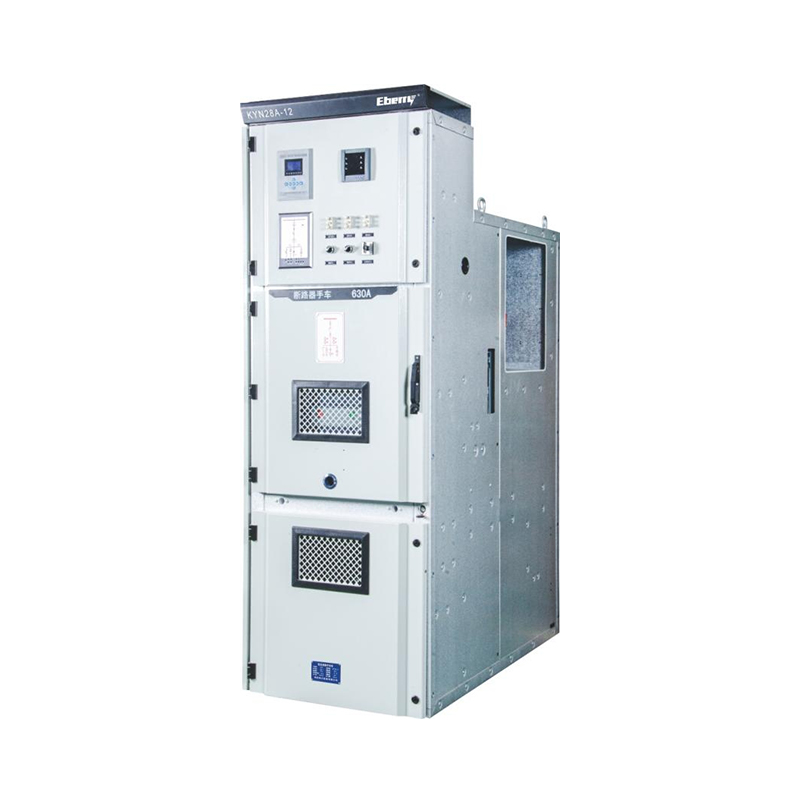

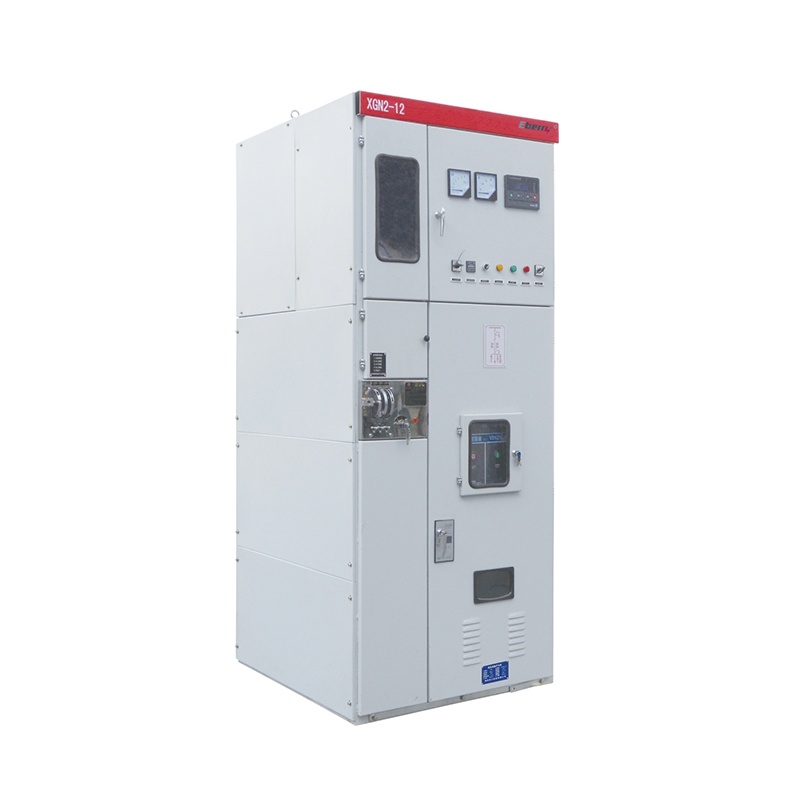

| Metal-Enclosed/Metal-Clad | Metal housing | Enhanced safety, serviceable | Utilities, heavy industry |
Applications of Medium Voltage Switchgear
Medium Voltage Switchgear is used across various sectors where electrical safety and continuity are vital:
1. Power Utilities
- Transmission and distribution substations.
- Ensures grid stability and protection of transformers and feeders.
2. Industrial Facilities
- Steel plants, cement factories, petrochemical complexes.
- Controls medium-voltage motors and sub-distribution systems.
3. Commercial Infrastructure
- Airports, hospitals, malls, high-rise buildings.
- Protects HVAC systems, elevators, and lighting loads.
4. Renewable Energy Systems
- Solar and wind power plants.
- Integrates medium-voltage inverters and collectors into the grid.
5. Transportation and Data Centers
Metro stations, tunnels, and IT facilities require compact, high-reliability switchgear.
To explore switchgear tailored for power distribution, visit our solution page.
Key Benefits of Medium Voltage Switchgear
| Benefit | Description |
| Operational Safety | Protects personnel and equipment from faults and enables safe maintenance |
| System Reliability | Fast fault clearing ensures power continuity and prevents blackouts |
| Space Optimization | GIS and SIS reduce installation space, especially in cities |
| Environmental Responsibility | Solid-insulated types avoid harmful SF6 emissions |
| Smart Monitoring | SCADA, IoT, and sensors enable predictive maintenance |
| Modular Configurations | Easily scalable for different projects and expansion needs |
You can also compare VCB breakers vs other breaker technologies in our product category overview.
Conclusion
Medium Voltage Switchgear is essential to modern power systems, delivering critical functionality in protection, control, and system efficiency. With evolving technologies and environmental awareness, MV switchgear continues to advance, offering compact, intelligent, and sustainable solutions for energy infrastructure worldwide.
Whether you’re planning a substation, modernizing an industrial plant, or integrating renewable energy, choosing the right MV switchgear is vital for performance and safety.
Looking for high-quality Medium Voltage Switchgear solutions?
At vcbbreaker.com, we specialize in delivering custom-built, eco-friendly, and internationally certified medium voltage switchgear for various industries and applications. Our expert team provides fast quotes, tailored engineering, and long-term service support.
Contact us today to get a quote or technical consultation for your next MV project.
