It is important to ensure efficiency and safety when powering up your systems. Selecting the right electrical switchgear can be a challenge with multiple options available like Metal Clad Switchgear (MCS) or Gas Insulated Switchgear (GIS). This blog will simplify the differences, advantages, and downsides of each so you can make the right choice that is reliable for your needs. Keep reading to find out the best one for you!

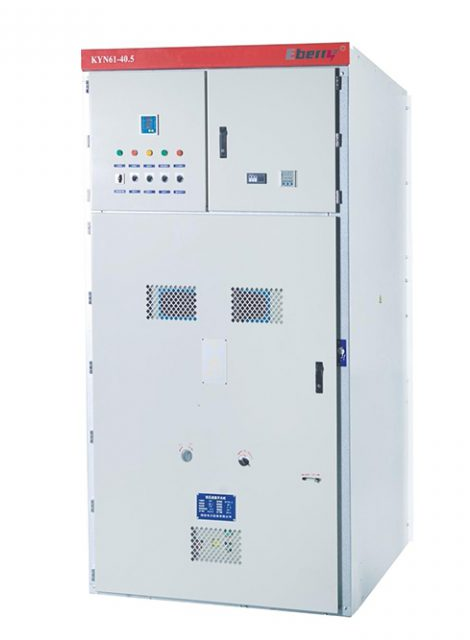

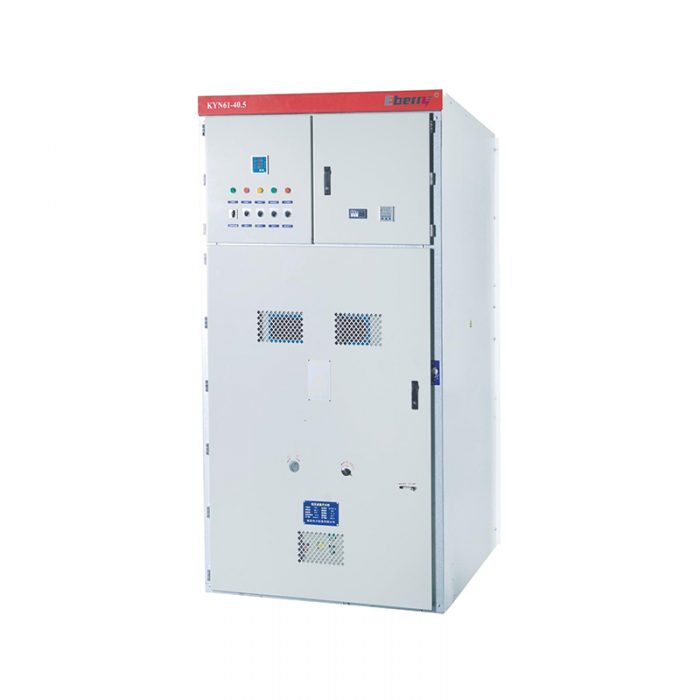

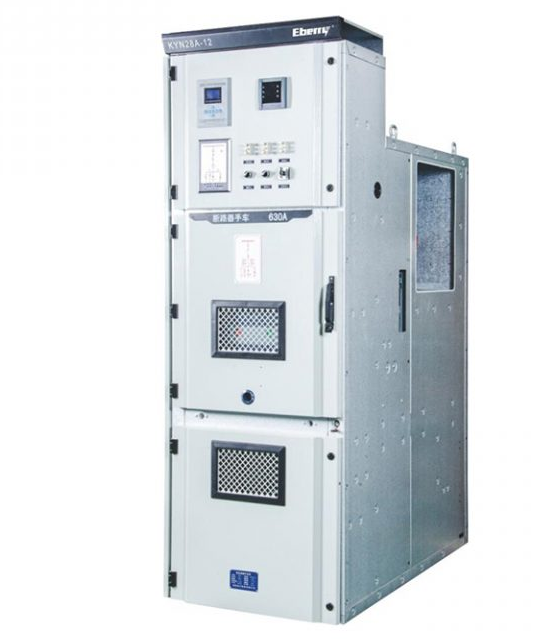

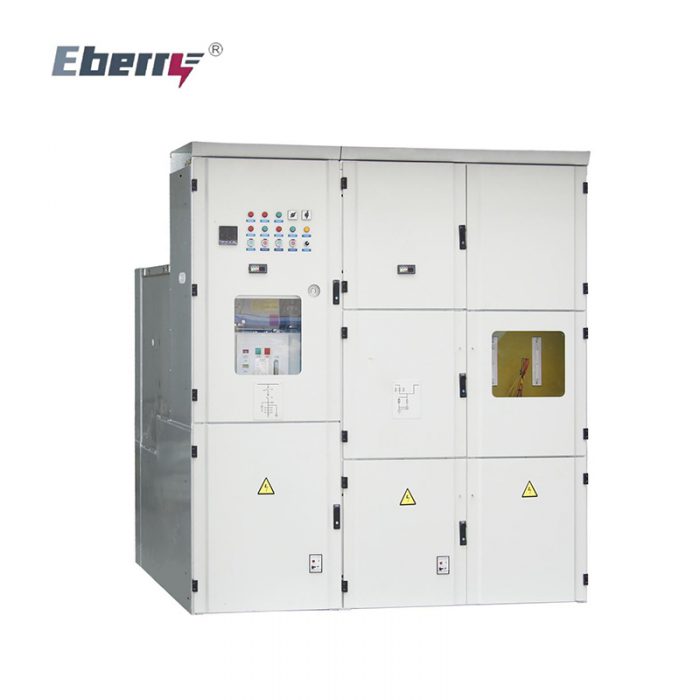

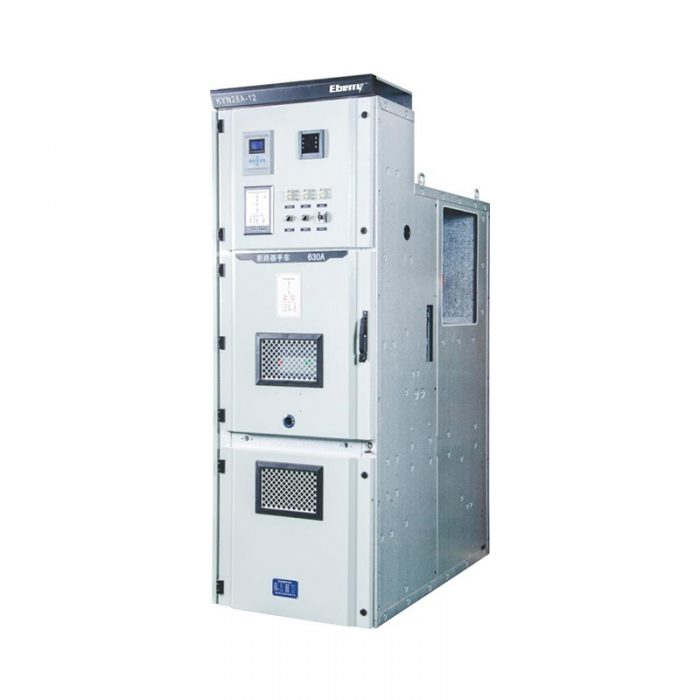

1) What is Metal Clad Switchgear?
A Metal Clad Switchgear is an example of a piece of electrical apparatus. It has a metal case that contains relays alongside circuit breakers and auxiliary components. Each unit is placed in a separate metal part compartment that is sealed. This design improves the safety and reliability of the system. The metal case provides firewall protection from live parts and ensures that faults are contained.
This equipment is commonly used with systems that have a moderate voltage. Well, it adheres to predefined safety, ventilation, and arrangement bounds. Moreover, the cladding metal switchgear guarantees protection for people alongside avoiding damage to equipment from electric shocks or arc flash.
Working Principle of Metal Clad Switchgear
The Metal Clad Switchgear operates on the principle of separating each major part. Each component, such as a circuit breaker, busbar, and relay, is housed in its own compartment. In the case of a fault in one part, it is contained and does not propagate to others.
The equipment stops the flow of current when it is necessary. If there is a short circuit or overload, the breaker is tripped. That action opens the faulty section only. The remaining healthy portions continue to function.
Most metal clad units employ the use of draw-out type circuit breakers. You know these can easily be substituted or detached. With the parts being easily removed, safer and faster inspections and repairs can be conducted.
Key Features of Metal Clad Switchgear
- Compartmental design: Each part is in its own metal section, which provides the system with enhanced fault isolation and increases safety measures. It reduces the chances of one fault affecting other components.
- Draw-Out Breakers: Breakers that can be removed to disconnect the whole system, meaning they can be slid out prior to power being turned off. This allows for safeguard and simple system suspension. This feature enables simple changes or checks to be made without shutting down the system.
- Enhanced Safety: Safety gaps and automatic shutters keep live components safe and minimize the risk of electric shock or arc flash incidents. These attributes improve safety for both technicians and operators.
- Minimal Maintenance Effort: Components are easy to reach and can be removed and replaced without difficulty. This enhances the efficiency of routine maintenance and minimizes downtime. In addition, it makes certain that the system over time remains in good working condition.
- Custom construction: Most units are standards-compliant, thus, quality and safety are ascertained. This type of standardization eases installation and replacement as parts are interchangeable in different models.
- Versatile Use: Within the right enclosures, the device can be mounted in outdoor and indoor settings. Its adaptability makes it appropriate for a wide variety of settings, from industrial plants to utility substations.
Applications of Metal Clad Switchgear
- Industrial Plants: Metal Clad Switchgear is used to power large motors. It also helps preserve the stability and dependability of electrical networks that are complex in nature.
- Power Stations: Aids in the distribution of loaded medium voltage power from generators to the grid. The switchgear’s design allows it to withstand the extreme stress of power generation and distribution without losing safety.
- Large Commercial Buildings: Enhances power reliability for elevators, HVAC systems, and other ancillary systems. Commercial buildings with electrical Metal Clad Switchgear provide safe and dependable distribution of power to critical systems.
- Hospitals and Data Centers: Ensure seamless potential power supply where it’s necessary to avoid idle time. This switchgear provides safety in the uninterrupted operation of infrastructure-critical hospital equipment and data center servers.
- Water and Sewage Plants: Controls pumps and control systems in a safe manner. Metal Clad Switchgear provides assured power supply without the risk of system breakdown for public health essential operations.
2) What is Gas Insulated Switchgear?
A type of electricity switchgear that insulates its parts using a gas (usually sulfur hexafluoride SF₆) is called gas-insulated switchgear (GIS). It covers circuit breakers, disconnectors, and busbars and fills a sealed chamber with gas. This increases the level of space needed by equipment and shields it from dust and moisture. It is used for high voltage work as it needs dependability and a compact structure.
Working Principle of Gas Insulated Switchgear
The electrical components of a GIS are placed into a sealed metal case. A gas called SF₆, with excellent insulating properties, fills the container. This gas enables the switchgear to operate with great electrical performance even within a compact area.
The GIS circuit breaker opens when it encounters a fault like a short circuit. The gas SF₆ evaporates very fast and cools down the arc, extinguishing it in the process. This action minimizes damage to the system and enables quicker recovery.
The gas SF₆ prevents contamination from the outside. Because of this shielding, components remain clean and perform well even as time progresses. The insulating capabilities of SF₆ enable GIS to be used in spaces with compact room, making it possible to manage high voltages.
Key Feature of Metal Clad Switchgear
- Compact Design: Switchgear Integrated with SF₆ Gas GIS units are smaller than traditional air-insulated switchgear (AIS). As we discussed, the primary reason is that SF₆ gas has exceptional insulating capabilities, which reduce the required space.
- Sealed Enclosure: The surrounding of the switchgear components is tightly sealed within a metal box which protects it from dust, dirt, and moisture. This enhances reliability while reducing maintenance.
- High Voltage Handling: Since GIS can handle even higher voltages, it is perfectly suited for high-voltage substations and other sensitive infrastructure.
- Low Maintenance: GIS is less maintained compared to air-insulated systems due to the sealed design. The gas protecting the internal parts from external contamination allows for less wear and tear.
- Safety: Safe operations are guaranteed with built-in safety features such as pressure relief devices. The sealed system ensures no exposure to dangerous electrical components.
- Environmentally Protected: Unlike other types of switchgear, GIS’s compact design and sealed system protects it from environmental conditions like harsh weather.
Applications of Metal Clad Switchgear
- Urban Substations: GIS is perfect for regions where urban planning space is limited. Its compact design allows for other powered substation components to be installed within city regions.
- Offshore Platforms: GIS is employed in offshore oil and gas platforms where space is limited and weather conditions are rough. Its sealed construction protects it from warm sea air corrosion.
- Industrial Facilities: Many industrial plants depend on GIS for reliable electrical distribution. Its smaller size and capability to deal with high-voltage makes it fit for industries with high-performance electrical systems.
- Renewable Energy Plants: GIS is commonly applied in wind and solar power plants which have limited space. They are easier to fit into the space constraints found in these renewable energy systems.
- Underground Power Systems: GIS is one of the technologies used in underground electrical systems such as metro rail stations or tunnels, where maintaining air-insulated switchgear is more difficult due to size constraints.
The design of Gas-Insulated switchgear guarantees, that it works optimally while occupying the least amount of space. It is especially helpful in inaccessible places where maximized space efficiency is required and dependability is critical.
3) Key Differences Between MCS and GIS
Following are the key differences between Metal Clad Switchgear (MCS) and Gas Insulated Switchgear (GIS):
i) Insulation Method
- MCS: This uses air as the insulating medium. Every component is separated in individual metal-enclosed compartments, with air acting as the insulator.
- GIS: Uses SF₆ (sulfur hexafluoride) gas for insulation. The components are placed in a sealed metal container and filled with gas to enhance electrical insulation.
ii) Size and Space Requirements
- MCS: Takes up more space generally since air insulation needs larger distances between components.
- GIS: More compact, as SF₆ gas allows for reduced size and smaller spacing between components.
iii) Maintenance
- MCS: Regular maintenance is necessary because the unit is subjected to environmental factors such as dust, moisture, and air.
- GIS: Requires less maintenance because the sealed metal enclosure protects the components from external contamination.
iv) Fault Interruption Mechanism
- MCS: Faults are interrupted by circuit breakers that utilize the air of a vacuum as the medium for arc extinction.
- GIS: Faults are interrupted by circuit breakers that use SF₆ gas to quickly absorb and extinguish the arc energy.
v) Environmental Resistance
- MCS: More prone to environmental conditions like humidity, dust, and extreme weather due to its open design.
- GIS: Resistant to weather as the components are sealed and protected from dust, moisture, and other contaminants.
vi) Application Areas
- MCS: Frequently utilized in medium-voltage applications in industries, power plants, and buildings.
- GIS: Used for high-voltage applications like urban substations, offshore platforms and renewables.
vii) Cost
- MCS: Typically has a lower cost than GIS because it utilizes simpler materials and technologies.
- GIS: Costlier due to the use of SF₆ gas, custom parts, and stricter size limitations.
4) Pros and Cons of Each Switchgear Type
Okay! Now, let’s talk about the pros and cons of both gears one by one.
a) Metal Clad Switchgear (MCS)
- Pros:
+ Affordable: MCS costs are lower than GIS, making it more accessible for most projects.
+ Easy Maintenance: No special tools or gas handling is required for maintenance.
+ Widely Available: MCS is easy to locate, and standard mean components can be replaced across the industry.
+ Clear Fault Isolation: The risk to the system is reduced because faults can be identified and managed quickly due to the compartmentalized design.
+ Proven Technology: Has been in use for a number of years and has accumulated reliability in various applications.
- Cons:
– Larger Size: Because of MCS’s increased spatial requirements, it becomes a problem in constricted areas.
– Environmental exposure: MCS equipment is more prone to dirt, moisture, and other contaminants.
– Higher maintenance: Exposure to the surrounding environment requires MCS to perform inspections and maintenance more frequently.
– Limited voltage handling: MCS is typically designed for medium-voltage applications and is not optimal for high-voltage requirements.
a) GAs Insulated Switchgear (GIS)
- Pros:
+ Compact design: GIS takes up less space which may be a benefit in areas where space is limited.
+ Low maintenance: The sealed design enhances the cleanliness of the system, which minimizes the frequency of maintenance.
+ High voltage handling: GIS is suitable for large-scale and critical infrastructure, as they are capable of enduring high GIS voltage levels.
+ Environmental protection: Dust, moisture, and other external elements cannot penetrate GIS.
+ Improved safety: The use of SF₆ gas significantly improves arc-quenching performance, enhancing safety during fault conditions.
- Cons:
– Higher cost: More advanced technology and SF₆ gas increases the cost of GIS.
– Complex installation: Careful handling is required during installation because of the enclosed gas.
– Gas concerns: SF₆ is known to be a powerful greenhouse gas that raises environmental issues.
– Limited availability: Components of GIS are not as commonly available, which may result in longer lead times.
5) Choosing the Right Switchgear: Key Factors to Consider
A number of key elements should influence your decision when choosing the right switchgear.
? Voltage Level: For your system, the voltage level is important. GIS is preferred for substations with high-voltage systems since these are more reliable. MCS is more appropriate for less demanding medium voltage system applications.
? Space Availability: If room is tight, GIS comes out on top. Its compact structure permits installation in small areas. MCS takes up more room because of its size as well as component spacing.
? Environmental Conditions: GIS is better for severe dusty or humid regions. Its closed structure gives good seal protection. MCS is less protected, requires more frequent cleaning, and needs maintenance to withstand environmental conditions.
? Maintenance Requirements: If low maintenance is a priority, then MCS will be a better choice. It is straightforward to sustain and does not need special gas management. GIS is sealed, thereby requiring low maintenance, although if repairs are needed it can be expensive.
? Cost: This is always a consideration. MCS is often the most cost-effective and, therefore, advantageous for medium-voltage applications, as well as for projects with financial constraints. Because of the technology and materials used, GIS becomes more expensive.
? Safety: Both switchgear types offer safety integrations, but GIS provides enhanced safety. Better arc-quenching capabilities and the sealed design ensure safer operations, thus minimizing risks during faults.
If you are looking for a dependable switchgear manufacturer, Eberry can be the best go-to voice for you. We offer high-quality and reliable switchgears of all types, moreover, you can tell us about your application need. And, we can make the switch gear that will suit your application. You can contact us with a single click here.
6) Conclusion: Which One is Better?
To be honest, your requirements will determine the options between Metal Clad Switchgear (MCS) and Gas Insulated Switchgear (GIS). MCS is ideal for medium-voltage systems where cost, space, and maintenance are key. In contrast, GIS is best suited for high-voltage applications where space is at a premium or outdoor conditions are harsher. As with any business decision, core factors such as voltage, space, environment, and budget should be aligned to determine the most practical fit for your project. Good luck!
