Are you having a hard time deciding between a switch disconnector, an isolator, a load switch or a circuit breaker? Making the wrong choice can lead to equipment malfunction, safety hazards, or unplanned outages. This guide aims to reduce confusion and help you select the right device for your configuration, thereby avoiding costly mistakes in the future. So, let’s dive in!
1) Quick overview of basic concepts
Pick any electrical device in the market and try to understand its functions, switch disconnectors, isolators, load switches, and circuit breakers all visually resemble, but they have distinctive purposes within the electrical power system. Let me simplify everything with short descriptions along with a table.
What is a Switch Disconnector?
A switch disconnector is a device used to switch off power and isolate a circuit safely. It can carry current under normal conditions and can break the circuit manually if the need arises. This device is typically found in distribution panels or control systems and is used when both switching and isolation are needed.
What is an Isolator?
An isolator is a type of electrical switch that guarantees a circuit is fully de-energised. It is used during the maintenance of electrical devices. It should only be used when there is no current present. Although isolators do not protect against faults, they provide safety for personnel during maintenance.
What is a Load Switch?
A load switch is utilised to switch power on and off during standard operations. It can withstand current flow when the system is operational; however, it may not offer any protection during short circuits. It is commonly found in areas that require frequent switching, such as lighting fixtures or motor control panels.
What is a Circuit Breaker?
A circuit breaker is a device capable of both disconnecting a circuit and providing overcurrent protection to the circuit. It will automatically trip the circuit whenever there are faults such as short circuits or overloads. Because of this functionality, it is one of the key safety devices in every electrical installation.
| Feature | Switch Disconnector | Isolator | Load Switch | Circuit Breaker |
| Can the switch be turned ON/OFF load? | Yes | No | Yes | Yes |
| Used for isolation? | Yes | Yes | No | Sometimes |
| Fault protection? | NO | No | No | Yes |
| Manual or automatic? | Manual | Manula | Manual | Automatic (can be manual) |
| Safe to use under load? | Yes | No | Yes | Yes |
| Main purpose | Switching + Isolation | Isolation only | Load Control | Protection+ Switching |
Now that you understand the basics, we’ll take a deeper look at each one in the next sections.
2) In-depth analysis of each device
Having reviewed the fundamental differences, let’s examine each device in more detail. For each device, you will learn its function, operational mechanisms, application domains, and importance. This knowledge will enhance your choices when selecting electrical equipment.
i) Switch Disconnector
As the name suggests, a switch disconnector is both a switch and an isolator, meaning it can turn off power as well as isolate the circuit from the power source. This is useful in places where there is no room for error or there is a need to reduce risk.
How It Works
Whenever a switch disconnector is used, it stops the flow of electricity between the equipment and the power source. This process disconnects the equipment safely for inspection or maintenance. The switch can be operated under load, meaning the entire system does not have to be turned off first.
Many designs show a gap when the circuit is opened, which serves as confirmation that disconnection has occurred. This type of isolation also enhances safety while servicing the device.
Main Features with Benefits
- ON/OFF Switching Capability: Permits operational rotary manual switching of circuits during normal operation. Partial shutdown of the system can be achieved as power can be stopped or restored in a controlled manner.
- Visible Disconnection Gap: It opens as a gap between contacts, revealing an OFF position. This gap verifies that the circuit is isolated and is therefore safe to work on.
- Handles Rated Current: Balanced switching contacts ensure the device carries the normal operating current rated to prevent overheating, burning out, or failing.
- Manual Control: Controlled by a lever or hand wheel, which enables fast and easy isolation for technicians without the need for automation.
- Lockable Handles: A number of models provide options for padlocking the handle. Well, this feature reduces accidental disconnection and enhances safety during servicing work.
- Robust Design: Constructed from materials with the ability to endure harsh industrial environments where dependability is a must.
Common Applications
- Industrial Equipment: Employed for the isolation of machinery such as motors or pumps, which may require servicing without the need for system interruption.
- Solar Inverters: Perform the function of disconnecting solar panels or inverters for inspection or repairs. This is very useful in large installations or rooftop-mounted units.
- HVAC Systems: Permits the localised shutdown of compressors or fans, which enables servicing to be undertaken without system-wide shutdowns.
- Elevator Control Rooms: Used to disconnect power from elevators for emergency and routine shutdowns or maintenance, safeguarding equipment and personnel.
- Battery Systems: Used for isolating battery banks during servicing, preventing the flow of current in energy storage systems.
- Distribution Panels: Used for disconnecting circuits individually to facilitate work on them while the others remain unaffected. Thus, it reduces complexity in the maintenance of the panels.
Limitations
– No Fault Protection: Overload and short circuit detection and interruption are not possible; requires integration with breakers or fuses.
– Requires Additional Devices: System complexity increases due to the need for extra protective devices.
– Manual Only in Most Models: Systems that need remote control are disadvantaged due to the low level of automation.
– Not for High Fault Currents: Can’t break circuits during heavy faults; cannot replace protective breakers.

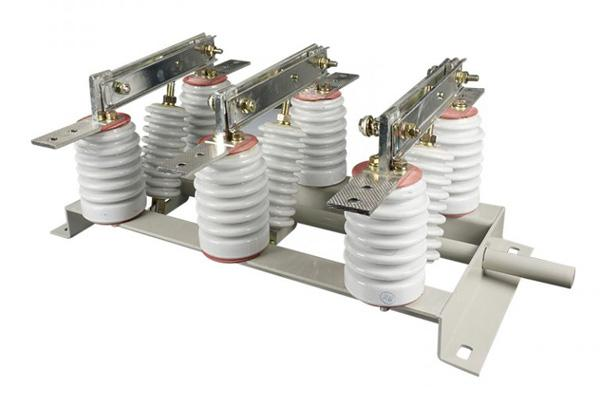

ii) Isolator
An isolator or disconnector is a mechanical switch. It completely disconnects one section of a circuit from the remaining parts of the system. An isolator is not meant to control load current, but rather operates safely when the system is off. Safety is prioritised over control with isolators.
How It Works
The opened isolators disconnect the circuits physically. There is a gap between the contacts which lets you verify that the power is actually turned off. This is a safety measure in case someone needs to work on the system. Some types of isolators have special interlock safety features which prevent their operation until a defined safe condition is satisfied.
Main Features With benefits
- Used When Circuit Is OFF: Technicians must work on the equipment only when there is no current in the circuit. Otherwise, it may result in arcing, which would endanger the safety of the technician.
- Complete Disconnection: As far as possible, isolators eliminate any possibility of the circuit path being completed and ensure that all equipment is fully disconnected from power sources.
- Visual Confirmation: Personnel can visually confirm the contact disconnection, thus adding an essential layer of safety before maintenance is performed. These systems mustn’t malfunction during maintenance operations.
- Low Wear and Tear: Reduced impact wear is associated with the device’s simple mechanical structure. The encapsulated isolator’s rugged design makes them service long service life and lowers the risk of failure.
Common Applications
- Electrical Power Substations: Isolating feeders, switches, or busbars enables technicians to inspect and work on systems safely after a planned shutdown.
- Large Motors: Help disable motors from power and avoid mechanical feedback risks during repairs. Moreover, they assist in hazard reduction during mechanical or electrical servicing.
- Transformers: Work in conjunction with grounding switches to isolate high-voltage transformers safely. In addition, they simplify and enhance the safety of transformer servicing.
- Solar Arrays: Enabled to sever DC power flow from solar panels for testing or cleaning. Thus, protecting service personnel from electric shocks.
- High-Voltage Panels: Critical to industrial plants for section isolation. They help complete maintenance tasks without fully shutting down the system.
Limitations
– Cannot Operate Under Load: It must only be used on systems that have already been de-energised. Attempting to open them under load could lead to arcing and severe damage.
– No Fault Protection: They do not detect and clear faults like breakers do. Alone, they will not help guard systems against overloads or short circuits.
– Requires Other Protection Devices: Must always be used in conjunction with breakers or fuses. This allows disconnection and electrical safety to be achieved simultaneously.
– Needs Pre-planned Operation: Since they don’t interrupt load, operations with isolators must be pre-planned. Improper timing poses a danger to personnel and equipment.

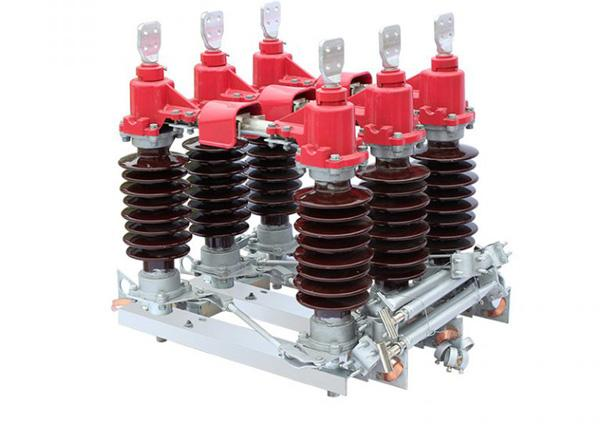

iii) Load Switch
A load switch is a type of switch that controls electricity flow in a circuit. It can turn power ON or OFF under normal operating conditions. It does not have protective capabilities for electrical faults. Where frequent switching is necessary, load switches are beneficial.
How It Works
Load switches can be operated while the circuit is energised. This is useful for daily tasks such as turning lights, motors, and equipment on or off. A load switch cannot interrupt fault current, however. Some of them have auxiliary contacts for remote monitoring or interlocking.
Main Features with Benefits
- Can operate while hot: The switch’s design enables it to function while the circuit is live.
- Operated manually or through a motor: Both hand levers and electric drives can be used for control. This provides flexibility for small setups and automation.
- Handles normal operational currents: They can be relied on not to overheat in systems with steady loads. They’re made to carry rated current.
- Cannot trip automatically on faults: These need to be paired with protection devices because, unlike breakers, they require external intervention during overloads or shorts.
- Compact and modular design: Integrated into panels and control cabinets without taking up much space. These are a neat fit for compact control cabinets.
Common Applications
- Lighting systems: Manages multi-floor and energy-efficient lighting configurations by switching building lights on/off in designated zones.
- Control panels: They are essential part of the control panels as they are useful during maintenance or equipment shutdowns to minimise impact on the entire panel.
- Manufacturing plants: Operate mixers, conveyor belts, and other motors. Their load-handling capability is useful for repetitive tasks.
- Fan systems: To start or stop HVAC blowers and large fans. Moreover, they provide control of airflow throughout different parts of the building.
- Water pumps: Used for starting and stopping pumps depending on the system’s requirements. Apart from this, they are useful in irrigation, cooling, or transporting fluids.
Limitations
– No protection against faults: They cannot detect overloads or short circuits, nor can they interrupt them. Using them in fault-prone areas can be dangerous, as they are mostly relied on.
– Needs fuses or breakers for full protection: Protective devices are needed to provide full protection. That complicates the design and increases costs.
– Not suitable for critical fault-sensitive systems: Load switches are unsuitable for sensitive or high-risk systems. Other protective systems, such as circuit breakers or protection relays are better suited.

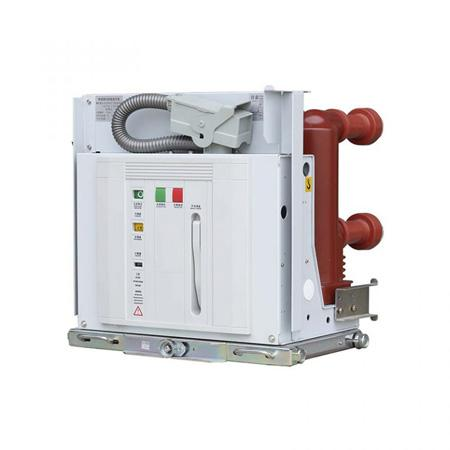

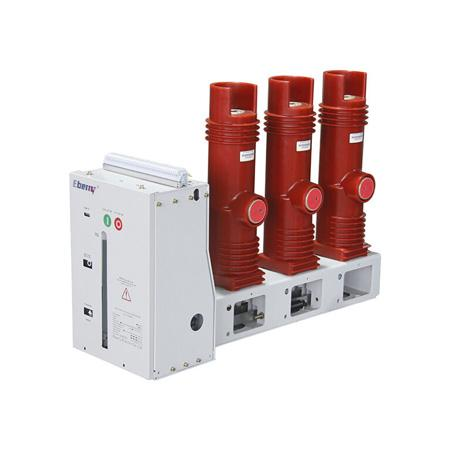

iv) Circuit Breaker
A circuit breaker is one of the most critical safety components in an electrical system. It makes sure an electrical circuit is switched ON or OFF, and simultaneously identifies faults to cut power when necessary. Such features make it very useful in both homes and industrial facilities.
How It Works
A circuit breaker has a system in place that tracks the electrical current going through the circuit. If the current is higher than the safe level due to overheating or a short circuit, the breaker will trip. This will open the circuit and stop the power supply. Well, repairs are avoided and fire hazards are minimised.
Depending on the type, it may use thermal, magnetic, or electronic sensing technologies. Moreover, it may be reset manually or automatically after clearing a fault. Unlike fuses, which need to be replaced after a single use, circuit breakers can often be reused multiple times.
Main Features with Benefits
- Can interrupt the current during faults: It works within milliseconds of the overload or short circuit. Helps prevent equipment damage or other hazards.
- Works under load and overload conditions: In normal and fault conditions, you can use it for switching. Provides maximum flexibility.
- Prevents short circuit risks: Power is disconnected immediately upon short detection. This mitigates potential fires, damage to wires, and burnout of equipment.
- Can be used multiple times (unlike fuses): Resettable breakers eliminate the need for replacement and offer increased efficiency during maintenance compared to fuses.
- Remote control: Integration with automation systems can be done using advanced breakers, as they possess smart features.
Common Applications
- Residential wiring: Employed to defend against faults or overloads, it safeguards sockets and appliances and lighting, protecting the household’s safety.
- Industrial machinery: Safeguards expensive machinery against electrical faults. Thereby, minimising operational downtime and repair costs in manufacturing plants.
- Server rooms: Power surges are prevented, which safeguards sensitive computers and data storage, thereby mitigating data loss.
- Generators: Controls output from standby or portable generators. Thus, helping to prevent backfeeding or overload conditions.
- Renewable systems: It monitors output from solar panels or wind turbines, ensuring smooth power distribution within green energy setups.
Limitations
– Breakers are more costly than other switches: Advanced functions and advanced sensing components result in higher initial costs. Despite this, there are long-term savings.
– Periodic maintenance may be needed: Inspections and servicing are sometimes necessary for large industrial breakers. Performance can be impacted by dust, wear, or calibration concerns.
– Requires proper settings and sizing:. Precise selection and installation are needed.
3) FAQ
1. Can a disconnecting switch be used as a load switch?
It is not. Disconnecting switches must only be operated when there is no power, as they need to break the circuit to ensure safe disconnection.
2. Why do load switches need fuses?
Fuses are essential as load switches offer no protection against faults such as overloads or short circuits. Fuses are needed to mitigate those risks, assuring the system is safely protected during abnormal conditions.
3. Switch disconnectors vs circuit breakers: which is more expensive?
Circuit breakers tend to be more expensive as they provide both switching and auto fault protection, whereas switch disconnectors only offer manual switching and isolation without any fault detection.

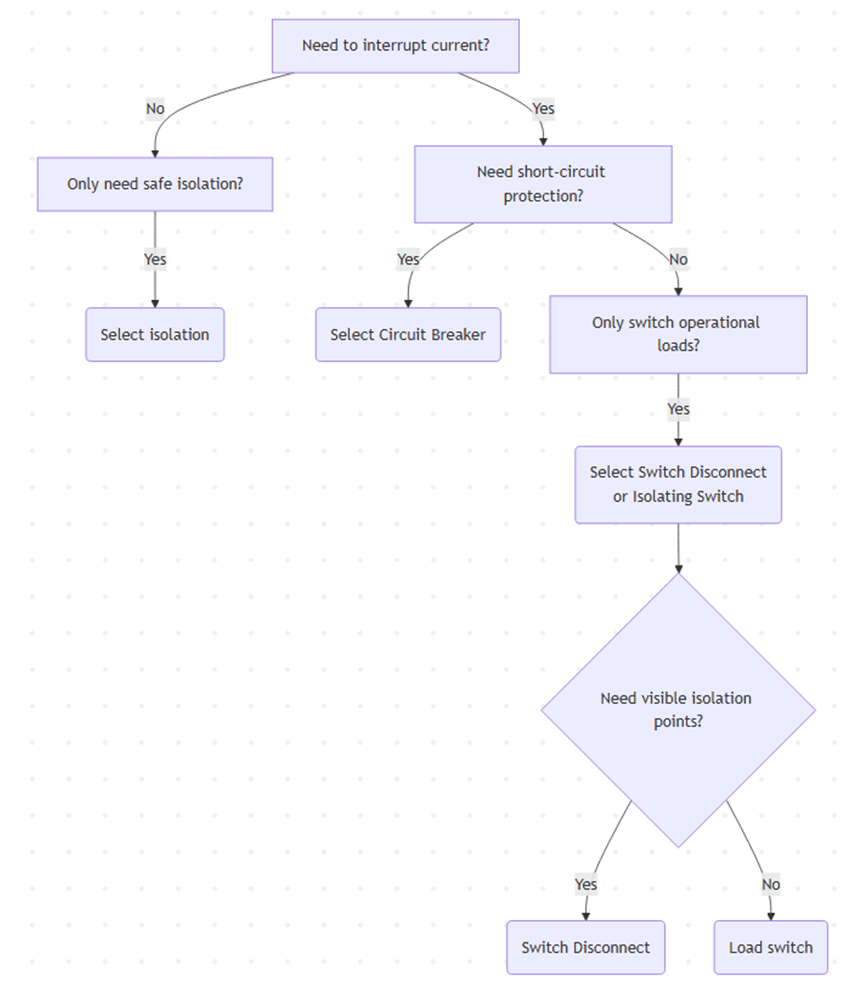

4) Selection Decision Flowchart
When to use isolator vs load switch? How to choose between switch disconnector and circuit breaker?
5) Conclusion
Alright! So, the decision between a switch disconnector, isolator, load switch, or circuit breaker can be made easily, but an incorrect choice may result in safety complications, damage to equipment, or expensive downtime. Knowing how these devices work and their application helps in choosing the appropriate one for the system.
