Do you find yourself taking excessive time on circuit breaker maintenance? Perhaps you feel that it is unsafe and needs better tools. A VCB breaker chassis truck might be the solution you need.
In this guide, we will walk you through how this intelligent system can enhance safety, efficiency, and speed when it comes to testing, replacing, or operating vacuum circuit breakers. So, keep reading!
1) What Is a VCB Truck?
A VCB truck or vacuum circuit breaker chassis truck is a movable base that supports vacuum circuit breakers installed in a switchgear panel. This can be likened to sliding carts, which make it easy for users to install or remove VCBS for various forms of maintenance, testing and replacements. It facilitates the movement of the breaker between working, testing, and disconnected modes.
Moreover, this truck ensures that the VCB safely connects with the circuit when intended and safely disconnects from the circuit when not needed. During powering and fault condition control, this truck also assists in providing safe access operation, supporting protection against you and system injuries.
Well, VCB trucks are utilised in medium-voltage switchgear systems located in power plants, factories and substations. Most VCB trucks come with both manual operation capabilities and electric ones. Depending on the type of switchgear, either a handle or a button can be used to move the chassis in or out.
Apart from this, some trucks provide interlock features that block incorrect actions, such as moving the truck when the brake is engaged.

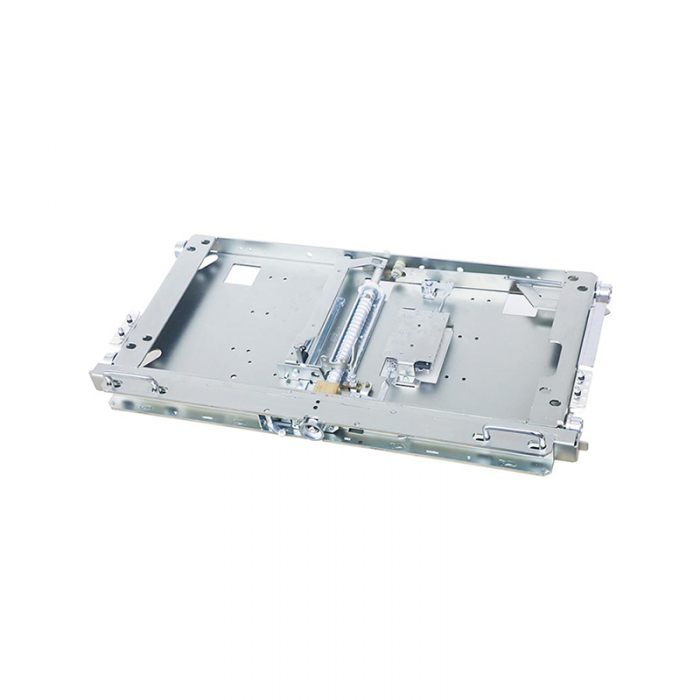

2) VCB Truck Structure and Mechanism
Now you know that the structural assembly containing Vacuum Circuit Breakers (VCBs), which can be shifted between operational positions, is referred to as the VCB truck. As a part of the switchgear system, it is one of the key components, since its construction needs to ensure safety while providing user-friendly operations, and its design has to be robust.
Now let’s examine some major details of VCB trucks and understand how their components coordinate.
i) Main Frame or Base
The VCB truck’s body is and is referred to as the main frame. This part is made out of hard metals so it can withstand the weight brought by the breaker and provide strength. It also has wheels or rollers at the bottom, which enable smooth sliding in and out of the switchgear panel. The base holds some key components, too.
ii) Operating Screw or Drive Mechanism
This is one of the parts that operate manual and automatic functions in a truck. With a turn of a handle, pressing of a button or motor (in electric models), it either moves forward along preset tracks, all the way back with ease using screws until it’s back into position within switch gears.
On manuals, turning handles make this movement possible seamlessly as well, without stalling any other component.
iii) Guide Rails and Rollers
Guided rollways have been invented for industries needing automation support; they perform track activities, displacing machines. Therefore, it serves multiple purposes, ranging from assisting directional control to preventing snagging during advancements.
iv) Position Stops
The truck has built-in stops for different positions: Disconnected, Test and Working.
- In the disconnected position, there is no possibility of arcing since the breaker is not in contact with any live parts.
- In test position, control circuits are operational; however, the main contacts stay open. You can perform some checks on the VCB here without powering up the entire system.
- At the working position, VCB will be ready to connect to the main circuit and handle load current or faults.
These positions, along with their respective marking,s are provided with shift interlocks to prevent error.
v) Interlocking Mechanism
This feature forms one of the highest levels of safety precautions that can be taken. It prevents the movement of the truck if the breaker is ON. It equally prohibits closing the breaker when not in the working position. These locks insulate you from accidents arising from unintended movements.
vi) Manual And Electric Controls
VCB trucks can be moved either manually or electrically. Manual trucks may employ hand cranks or handles. Electrically driven units operate via motors with buttons for forward and backwards motion; some designs allow both options.
vii) Spring And Latch Mechanisms
The truck’s spring-loaded latches assist in locking the truck into position as its retention mechanism. The components are held securely to protect from unwanted movements and guarantee an electrical contact in the operational position.
viii) Contact Arms and Their Connection Points
A bolt-on contact arm is provided on the Truck, which connects with rotating parts of the switchgear. They must capture alignment with the connection points of the panel while in working position posture.
How Everything Collaboratively Works Together
Okay, while moving the truck into the panel, its wheels fit onto rails, and an operating screw assists to guided motion cooperatively. While in position spring latches lock it in place. An interlocking system ensures all conditions are positively met prior to enabling the closing operation on the breaker switch.
If the position of the truck is not right, the breaker will not get closed. Such an elegant design enhances safety within systems with predefined reserve control requirements.
The whole system is constructed with safety, user-friendliness, and reliability in performance as the main goals. Well, it allows rapid modifications within strict charge requirements and safe diagnostics in harsh testing environments.

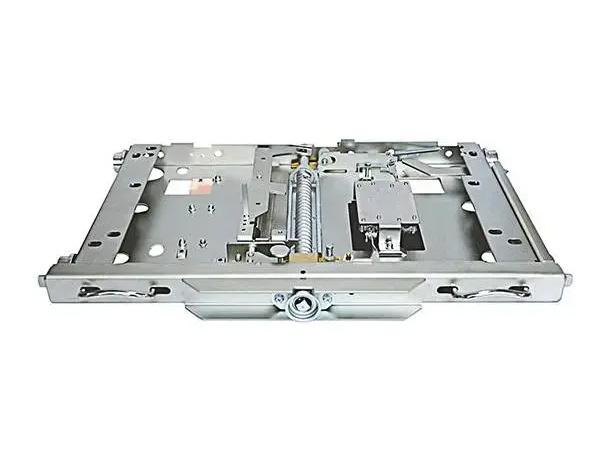

3) VCB Truck Advantages and Disadvantages
The safety, flexibility, and overall management of your electrical system are refined with a VCB truck. A good example would be the testing, removal, or replacement of a vacuum circuit breaker, which can be done with minimal disruption to the whole system. Just like any other device, there are pros and cons to it. Let us examine it more deeply.
Benefits of Using a VCB Truck
+ Ease of Maintenance and Troubleshooting: The use of VCB trucks enables the user to isolate the breaker without switching off the main power supply. This means unobstructed maintenance work, making operations seamless.
+ Safety Measures: Interlock features protect from moving the truck if closed breaker risks exist, which helps minimise accidents for personnel injury and equipment damage, hence better precision in dangerous workplace environments.
+ Simple Removal and Installation: The operator does not require several minutes to disconnect wires or power down panels in cases of unit failures. Thus, aiding time-sensitivity with emergencies worsened by failures saves considerable time.
+ Provides Smooth Sliding Mechanism: For the user, especially when dealing with heavy-duty brakes, the work truck’s movement along its rails is effortless and fluid. This greatly reduces the wear and tear that an erratic motion may cause.
+ Equipment Manual and Electric Operation Options: Electric models allow for pressing buttons to move the truck manually. A power outage will not be a problem, as a manual handle comes in handy.
+ With Strong and Long-lasting Design Features: VC trucks were notable due to their long-lasting features. They can bear rough daily usage, even in extremely tough environments like power plants or substations.
Disadvantages of a VCB Truck
– Higher Initial Cost: There are additional costs related to incorporating safety feature systems for both mobile-type setups and fixed types. But you can appreciate the long-term savings that come with this purchase despite the initial cost.
– Requires Skilled Attention: There is an issue with safety steps and the proper functioning of the truck. So, for it to work optimally, training and rules must be followed during operation.
– Additional Components That Need Maintenance: Components like guide rails or certain screws add to productivity by needing additional maintenance. All these parts are important and need servicing in order to function productively.
– Not Utilised In High Or Low Voltage Systems: For trucks labelled VCB, intersection at 11kV or 33kV works best since any system rated below 1kV is termed as low voltage and anything above is deemed extremely high and incompatible.
– Space Needed Towards the Front: While assistance inside the panel aids in the process, the sliding out motion necessitates space at the front. These pose limitations when installed in small control rooms that are tighter.
– Risky Issues With Misalignment: Prevalently worn wheels or rails can lead to contact misalignment with panels, due to forced misalignment creating resistance. If this happens, severe strain connections result from loosening seals. It can lead to arcing, burning responses, overheating, too much power flow for the right function, and disabling optimal operations.
– Absence of Issues with Learning Obstacles: Beginners might take some time to learn how to operate the truck. So, a know-how on when and how to use the switch for disconnected, test, and working positions is vital.
While it might be more demanding, attention-intensive, and costly at first glance, in the long run, that value justifies that expenditure. With a skilled team focusing on maintenance, VCB trucks can deliver outstanding reliability throughout your power distribution network.

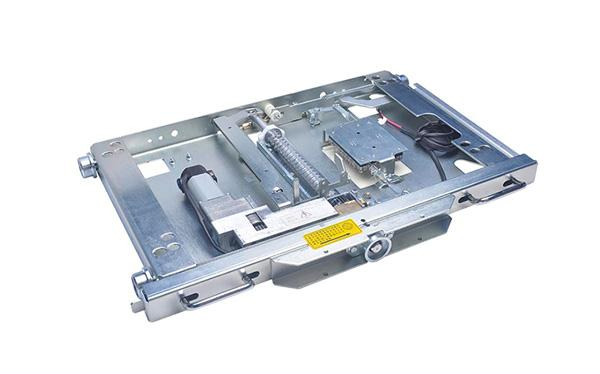

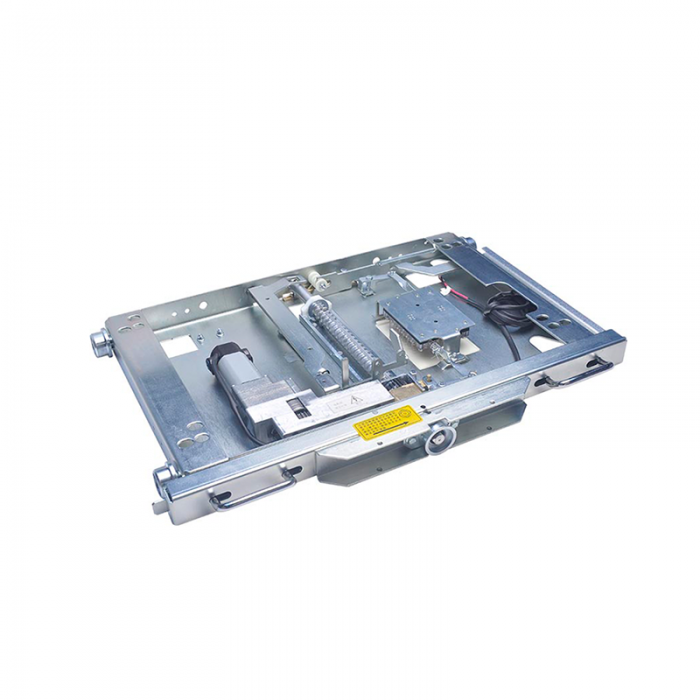

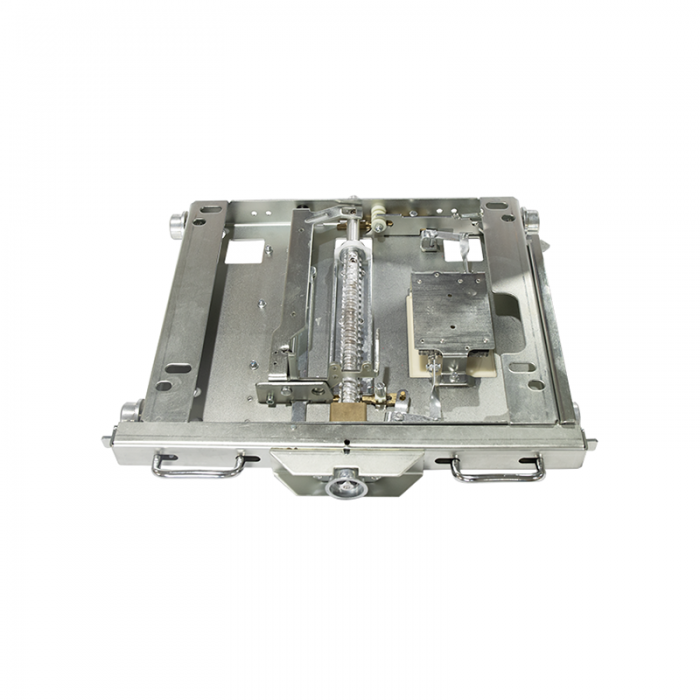

4) Eberry DDPC-4-800 Chassis Truck Advantages
Professionals who use medium-voltage switchgear understand the need for dependable chassis trucks.
Built specifically for KYN28A switchgear systems, the Eberry DDPC‑4‑800 chassis truck effortlessly carries VD4 circuit breakers. It guarantees efficiency while prioritising safety and exhibiting high durability. Its enhanced operational efficacy aids both routine tasks as well as critical maintenance work.
Some of the primary benefits:
- Precise and Safe Alignment
The DDPC-4–800 guarantees that the breaker will always achieve the correct alignment for each operation. Well, this enhances safe working while eliminating connection faults.
- Enhanced Strength Second to none Shock Resistance
Composed of high-strength materials, the truck does not bend or shake under frequent movement.
- Dependable Grounding and Electrical Insulation
This gives sturdy grounding as well as effective electrical insulation, which normally strengthens arrangements against fault currents and short-circuits.
- Resists Corrosion and Rust Vandalism Effectively
Because of the surface treatment, rust is resisted and temperature changes are withstood, hence usable indoors and outdoors.
- Easy Maintenance Procedures
While servicing equipment, there is a considerable amount of time saved due to the ease in cleaning and servicing, which stems from a simple, organised structure.
- Motor Protection Feature Includes Auto-Reverse Functionality
Should the truck become electrically operated and stuck, it will automatically disable the electric motor and briefly reverse to minimise wearout damage, restoring safety to your system.
- Seamless Manual/Electric Function
Regardless of mode engaged (manual/electric), seamless transitions are achieved, ensuring full control through responsive feedback.
5) Operating Instructions
Whenever you intend to use the chassis truck, make sure you pay attention to some very important steps which must be strictly followed.
- Verify Circuit Breaker and Grounding Switch: Before moving the chassis in or out, confirm that both the grounding switch and circuit breaker are in the open (off) position. Attempting to move the truck while either one of these is closed can pose some dangers.
- Manual Priority Operation: If there is a manual priority operation for the chassis, it should be performed by using the appropriate handle. In this situation, pressing an electric button during manual mode will be ineffective.
- Transitioning from Test Position to Active Work Position: In situations where a chassis needs to be moved from a “Test” position to a “Working” position, but isn’t in either of those positions.
First, you must manually or electrically move it into a “Test” position, and only then can you advance it into the “Working” position after reaching the “Test” position.
- Over to Manual From Electric: To switch over to manual, first insert the handle and rotate it to 800, then unwind about 30 degrees. If it does not come out easily, pull on the handle carefully, examine the screw rod angle, and correct as necessary before retrying.
- Emergency Suspend or Reset: For any malfunction during electric operation or in between fault resolution steps, simply press the reset button to stop or restart the system.
If you follow the instructions, it will aid in guaranteeing every operation is performed with safety as well as conducted seamlessly without any issues.
6) Conclusion
Alright! So, the importance of a VCB chassis truck in a medium-voltage switchgear system is evident as it provides safe, seamless, and agile manoeuvrability for vacuum circuit breakers. It makes the management of power systems with straightforward testing and processes easier by its unique safety features and dual operation modes.
The good news is that models such as Eberry DDPC‑4‑800 further enhance value with intelligent engineering and durable construction. Following proper operational procedures ensures dependable performance while prolonging the life of both the breaker and chassis. Contact Eberry right now.
