A VCB Breaker, or Vacuum Circuit Breaker, is a type of circuit protection device that interrupts current flow during faults using vacuum as the arc extinguishing medium. It is widely adopted in medium-voltage (MV) applications ranging from 11kV to 33kV due to its high reliability, minimal maintenance, and eco-friendly design. This blog explores the fundamentals of VCB Breakers, how they work, their key advantages, and typical applications across industries.

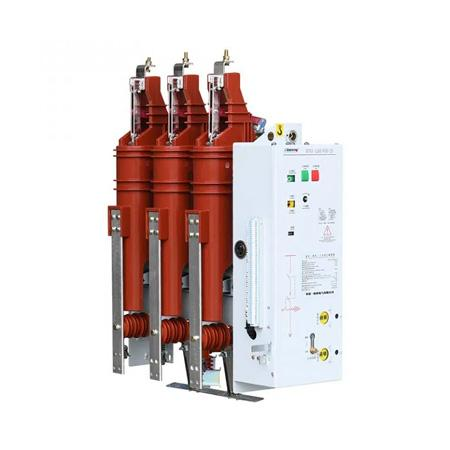

What Is a VCB Breaker?
A VCB Breaker is a medium-voltage circuit breaker that utilizes a vacuum inside a sealed interrupter chamber to extinguish arcs when the contacts separate. The vacuum provides a highly efficient dielectric medium, making VCBs suitable for fast and safe power interruption. These breakers are extensively used in power distribution, industrial plants, renewable energy systems, and utilities.

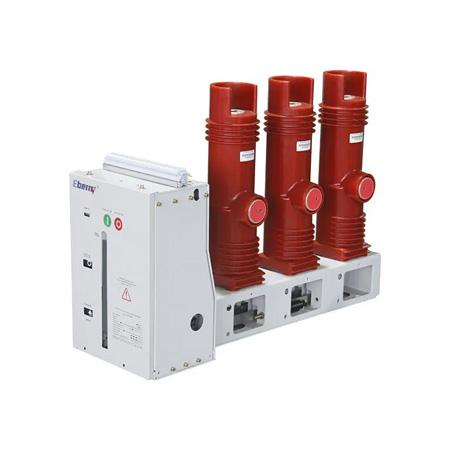

How Does a VCB Breaker Work?
The core component of a VCB Breaker is the vacuum interrupter, which houses two contacts: a fixed and a moving one. When a fault occurs:
1.The contacts are forced apart by the operating mechanism (typically spring or magnetic actuators).
2.As the contacts separate, an arc is generated due to ionization of metal vapor.
3.In the vacuum environment, this arc is quickly extinguished at current zero due to the absence of ionizing particles.
4.The dielectric strength recovers rapidly, preventing any arc re-strike.
The entire process occurs within milliseconds, ensuring minimal damage to the system.
Key Advantages of VCB Breakers
VCB Breakers offer several technical and environmental advantages, making them a preferred choice in MV systems:
1. Fast Interruption
VCBs interrupt current quickly and efficiently, often within 2.5 cycles, reducing thermal and mechanical stress on connected equipment.
2. Low Maintenance
The vacuum interrupters are sealed for life, requiring virtually no maintenance over 20–30 years of service.
3. Eco-Friendly Operation
VCB Breakers do not use SF6 or oil, eliminating greenhouse gas emissions and the risk of toxic leaks.
4. High Dielectric Strength
Vacuum offers excellent insulation properties, ensuring reliable arc quenching and quick recovery.
5. Compact Design
VCBs are smaller and lighter than air or oil circuit breakers, ideal for space-constrained installations.
6. Silent and Safe
Operation is quiet, and there is no risk of explosion or fire, enhancing workplace safety.
Applications of VCB Breakers
Due to their durability and performance, VCB Breakers are found in a wide range of applications:
- Power Distribution Networks: Urban and rural substations.
- Industrial Facilities: Steel mills, petrochemicals, cement plants.
- Renewable Energy: Wind and solar farms, battery energy storage systems.
- Commercial Buildings: High-rise buildings, airports, hospitals.
- Transportation: Railways and metros requiring medium-voltage protection.
VCB Breaker vs Other Circuit Breakers
| Feature | VCB Breaker | Air Circuit Breaker (ACB) | SF6 Circuit Breaker |
| Interruption Medium | Vacuum | Air | SF6 Gas |
| Voltage Range | 11kV – 72.5kV | Up to 1kV | 33kV – 800kV |
| Environmental Impact | No emissions | Neutral | High (SF6 is a potent GHG) |
| Maintenance | Very Low | Moderate | High |
| Size | Compact | Bulky | Medium |
Conclusion
The VCB Breaker is a cutting-edge solution for medium-voltage electrical protection. With advantages in speed, safety, maintenance, and environmental impact, it has become the preferred breaker technology in modern electrical systems. As global regulations push for SF6-free and sustainable alternatives, the VCB Breaker stands out as a future-ready, eco-conscious choice for reliable power distribution.
