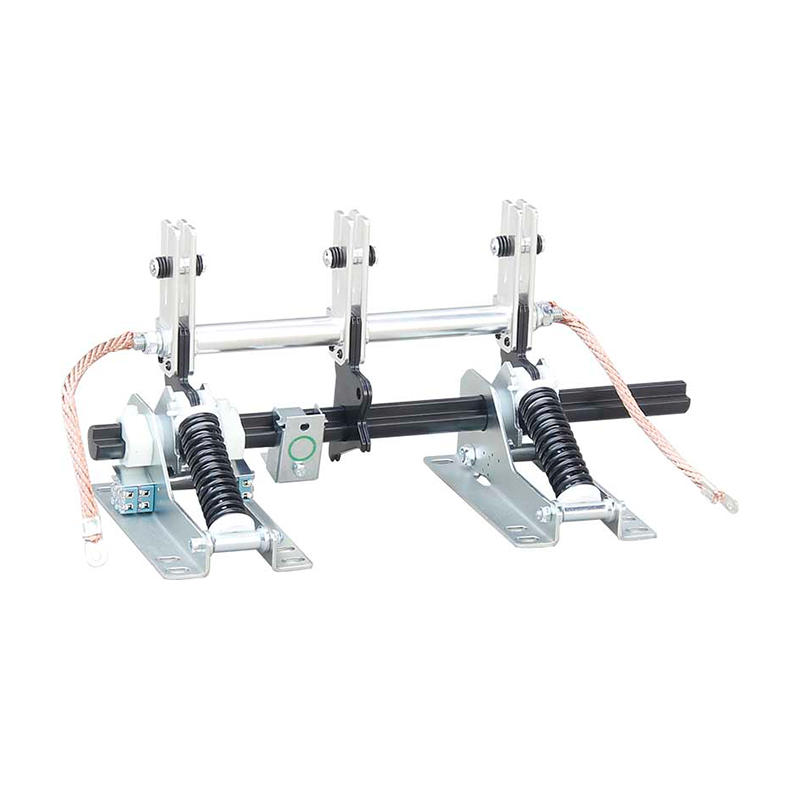

Product definition
Working Condition
- Ambient temperature:-10°C-+40°C;
- Altitude:≤1000m;
- Relative humidity: Daily average≤95%,Monthly average≤90%
- Earthquake intensity:≤8 degree;
- Dirtiness degree: ll.
Technical Parameters
| No. | Item | Unit | Data | |
| 1 | Rated voltage | KV | 12 | |
| 2 | Rated short time withstand current | KA | 31.5 | |
| 3 | Rated short circuit withstand time | S | 4 | |
| 4 | Rated short circuit making current | KA | 80 | |
| 5 | Rated peak withstand current | KA | 80 | |
| 6 | Rated insulation level | 1min power frequency withstand voltage | KV | 42 |
| Lightning Impulse withstand voltage | 75 | |||
| 7 | Mechanical life | TIMES | 2000 | |

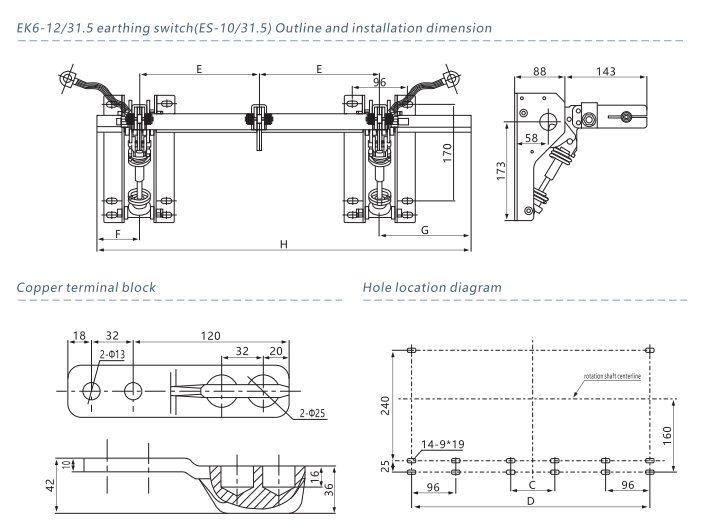

Installation drawing and hole location diagram

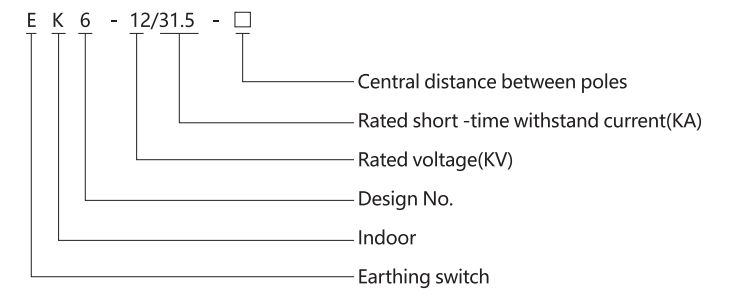

| Specification | E | F | G | H | D | C |
| EK6-12/31.5-165 | 165 | 75 | 160 | 565 | 426 | |
| EK6-12/31.5-180 | 180 | 75 | 160 | 595 | 456 | |
| EK6-12/31.5-200 | 200 | 75 | 160 | 635 | 496 | |
| EK6-12/31.5-210 | 210 | 75 | 160 | 655 | 516 | |
| EK6-12/31.5-220 | 220 | 75 | 160 | 675 | 536 | |
| EK6-12/31.5-230 | 230 | 75 | 160 | 695 | 556 | 96 |
| EK6-12/31.5-250 | 250 | 75 | 160 | 735 | 596 | 96 |
| EK6-12/31.5-275 | 275 | 75 | 185 | 810 | 646 | 96 |
Order notes:
Please indicate the product specifications and the central distance between poles.
Please confirm whether the electrical display model number is required.
Note the soft link length when ordering (normal length =250mm).
If you have any special requests, please consult us.
