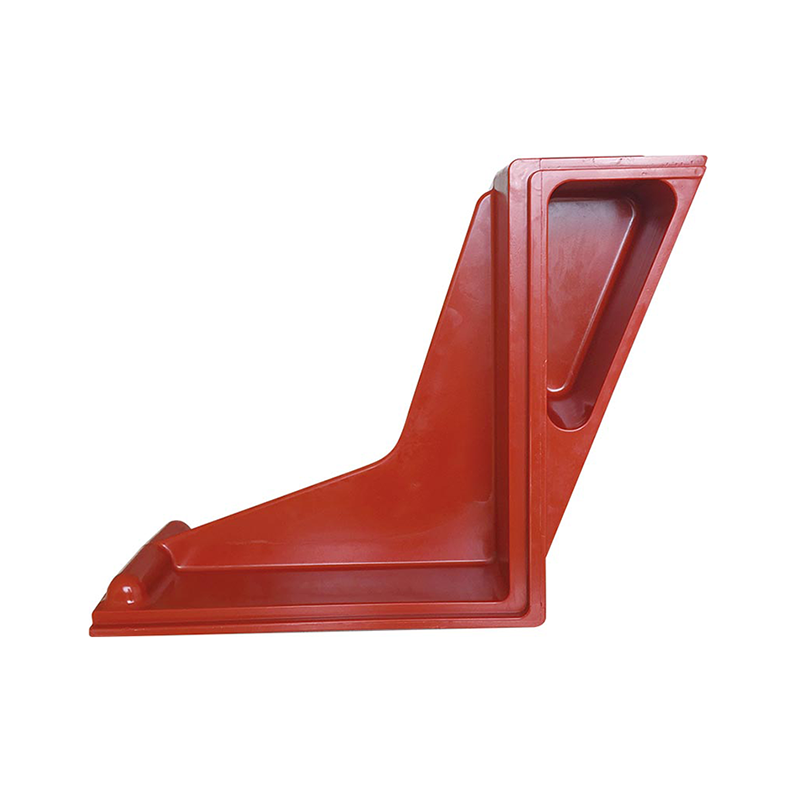

WB4-40.5 ABB 40.5kV High Voltage Insulation Red Epoxy Resin Baffle Plate Bending Plate Series

WB4-40.5 ABB 40.5kV Red Epoxy Resin Baffle Plate Bending Plate Series

WB4-40.5 ABB 40.5kV High Voltage Insulation Red Epoxy Resin Baffle Plate Bending Plate Series

The Bending Plate is a critical insulating component widely used in high-voltage switchgear and electrical equipment. Designed to provide robust mechanical strength and reliable electrical insulation, the plate is manufactured from high-quality insulating materials, ensuring durability and stability under extreme conditions.

Free Quote

Share to:

The Bending Plate component features a unique bending structure, allowing it to accommodate mechanical stresses and support the proper alignment of various parts within the system. The Bending Plate is typically utilized to isolate live parts and maintain a safe distance between conductive elements, thus enhancing the overall safety and reliability of electrical systems.

Its precise dimensions and excellent thermal and electrical properties make it suitable for applications in high-voltage environments, withstanding high mechanical loads while preventing electrical breakdowns.

Drawing
