JN17-12/50 Earthing Switch 3-10kV Power System Modular Design High Voltage Switchgear Protection

JN17-12/50 Earthing Switch 3-10kV Power System Modular Design High Voltage Switchgear Protection

JN17-12/50 series (previously JN15-12/750) earthing switch is a newly designed and improved product based on the ES1 model. The structure is modular and suitable for power systems with 3-10kV, three-phase AC at 50/60Hz. lt serves as an earthing protection device and can be used in various types of high-voltage switchgear. The product complies with GB985-2004 and lEC129 standards.

Free Quote

Share to:

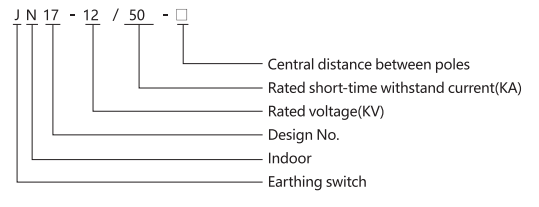

Product definition

Working Condition

Ambient temperature:-10°C-+40°C;
Altitude: ≤1000m;
Relative humidity: Daily average ≤ 95%,
Monthly average ≤ 90%
Earthquake intensity:≤ 8 degree;
Dirtiness degree: ll.

Technical Parameters

No.	Item		Unit	Data
1	Rated voltage		KV	12
2	Rated short time withstand current		KA	50
3	Rated short circuit withstand time		S	4
4	Rated short circuit making current		KA	100
5	Rated peak withstand current		KA	80
6	Rated insulation level	1min power frequency withstand voltage	KV	42
6	Rated insulation level	Lightning Impulse withstand voltage	KV	75
7	Mechanical life		TIMES	2000

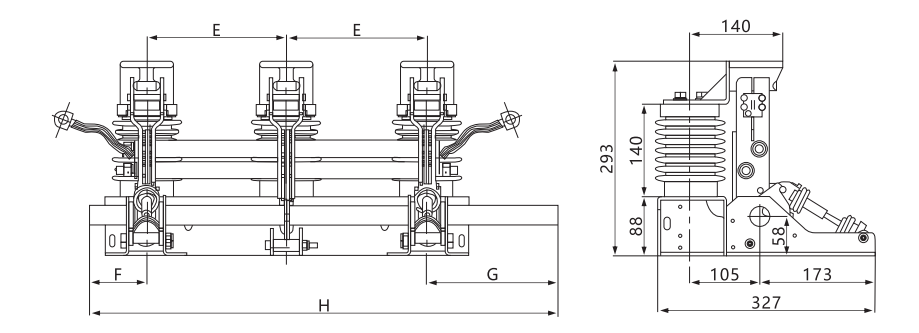

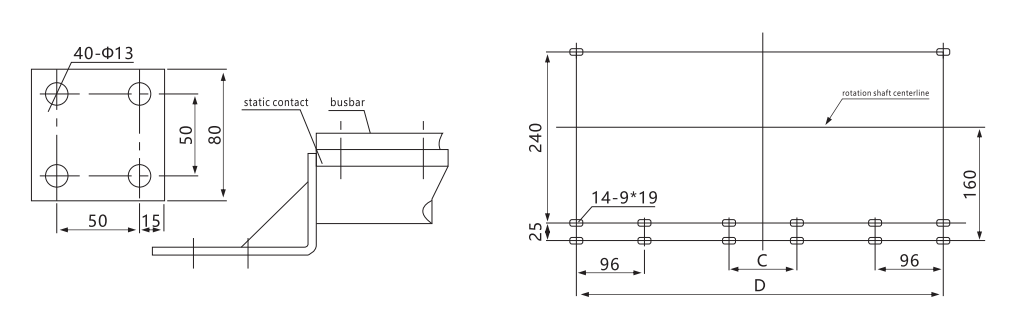

Installation drawing and hole location diagram

Specification	E	F	G	H	D
JN17-12/50-210	210	50	185	655	516
JN17-12/50-220	220	50	185	675	536
JN17-12/50-230	230	50	185	695	556
JN17-12/50-250	250	50	185	735	596
JN17-12/50-275	275	50	210	810	646

Order notes:

Please indicate the product specifications and the central distance between poles.

Please confirm whether the electrical display model number is required.

Note the soft link length when ordering (normal length =250mm).

If you have any special requests, please consult us.
