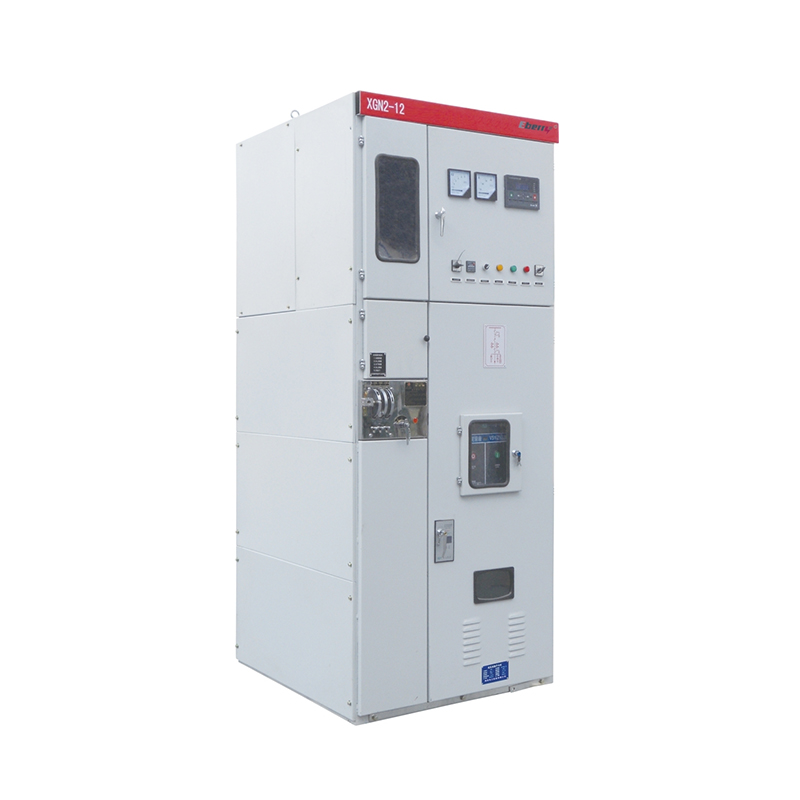

XGN2-12 Box Type Fixed AC Metal-enclosed Switchgear (referred to as switchgear) is used for receiving and distributing electrical energy in power systems with a rated voltage of 3.6-12kV, three-phase AC 50Hz, and rated current of 630-3150A. It is especially suitable for occasions requiring frequent operation. Its bus system is a single bus, and single bus with bypass or double bus systems can be derived.
The switchgear conforms to the requirements of the national standard GB3906 “3-35kV AC Metal-enclosed Switchgear” and the international standard IEC 298, and has a perfect anti-misoperation function.
The main switch of this switchgear adopts ZN28A-12 series, ZN28-12 series, and other vacuum circuit breakers, while the isolation switch adopts GN30-12 rotary isolation switch, GN22-12 high-current isolation switch, and GN30-12 rotary high-current isolation switch series products.
| Name | Unit | Data | |||||
| Rated Voltage | kV | 3.6、7.2、12 | |||||
| Rated Current | A | 630 | 1000 | 1250 | 2000 | 2500 | 3150 |
| Rated-short-circuit Breaking Current | KA | 20 | 31.5 | 40 | |||
| Rated-short-time Withstands Current | KA | 20 | 31.5 | 40 | |||
| Rated Peak Withstands Current | KA | 50 | 80 | 10 | |||
| Rated Shart-circuit Closing Current | KA | 50 | 80 | 100 | |||
| Duration of Rated Short-time Withstand Current | S | 4 | |||||
| Protectlon Degree | IP2X | ||||||
| Busbar System | Single bus, single bus with bypass, double bus | ||||||
| Operating Type | Electromagnetic, bullet ZE energy storage type | ||||||
| Dimension width X depth X height | MM | 1100x1200x2650(1250A以下)1100x1200x2650(up to 1250A) | |||||
| Weight | KG | 1000 | |||||
